Ariens IKON ONYX 52″ Zero-Turn Mower | 23HP Kawasaki V-Twin

Ariens IKON ONYX 52-Inch Zero-Turn Mower with 23HP Kawasaki FR691 V-Twin Engine

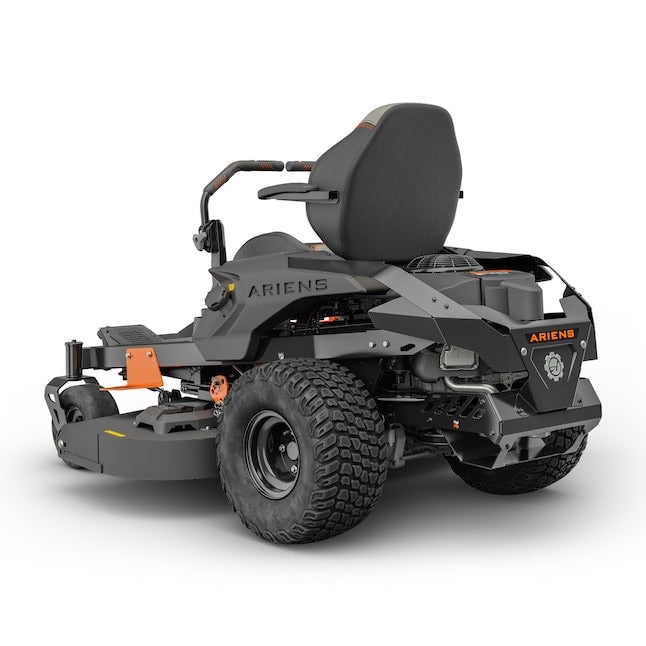

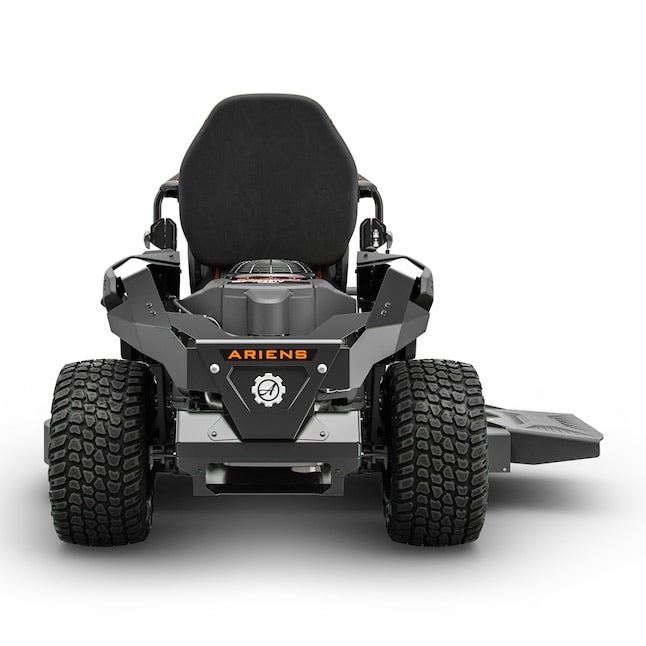

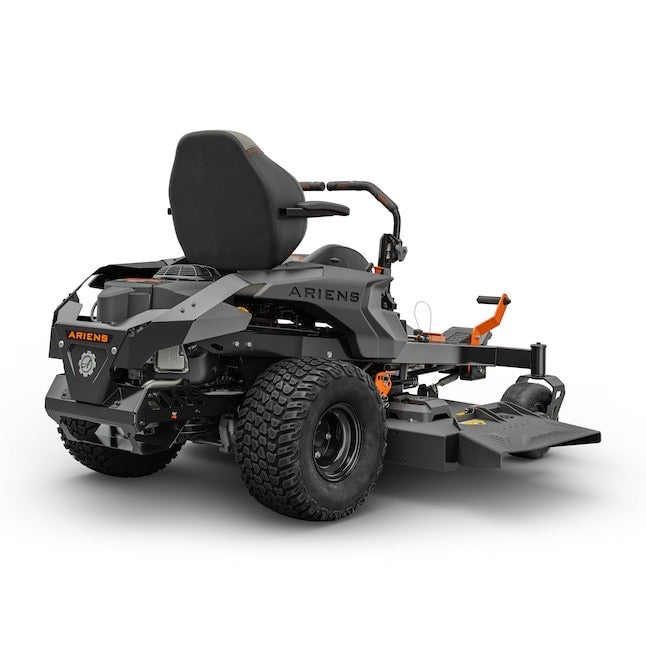

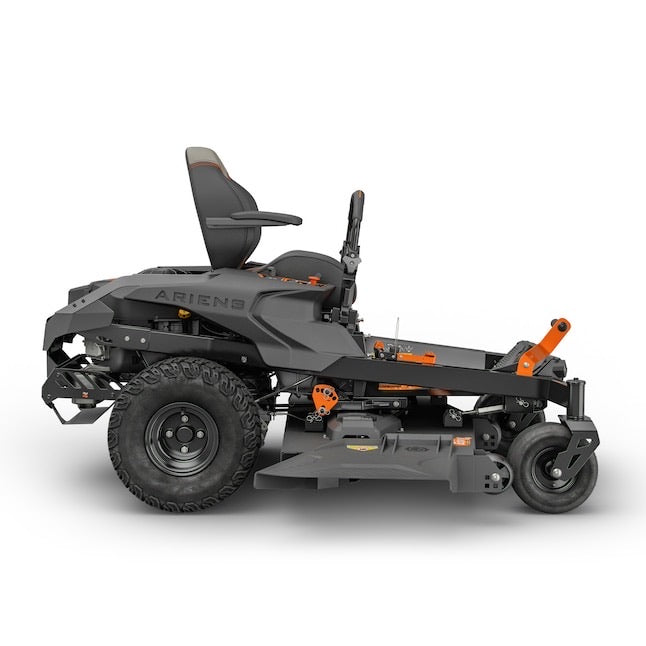

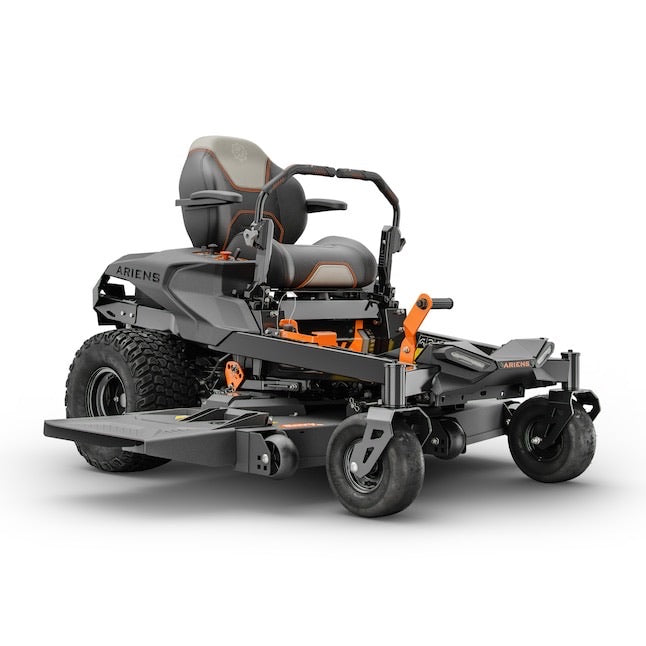

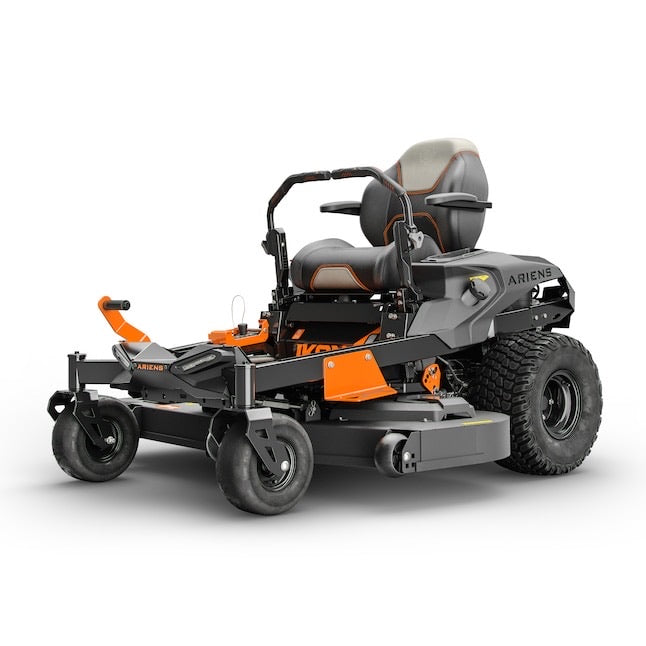

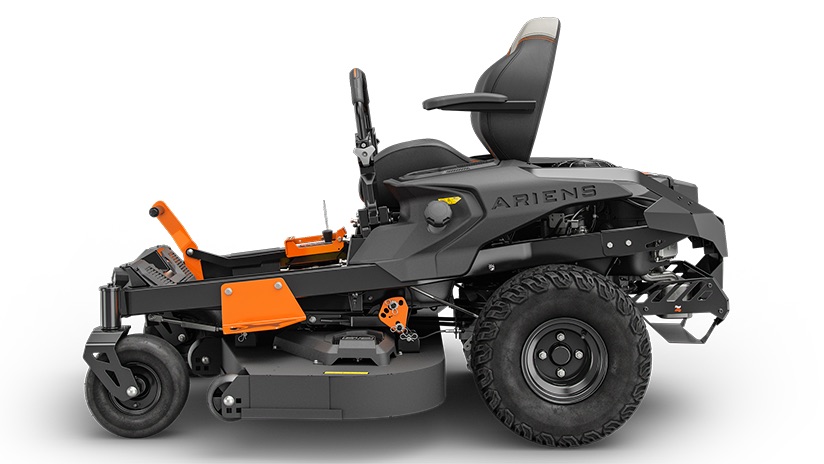

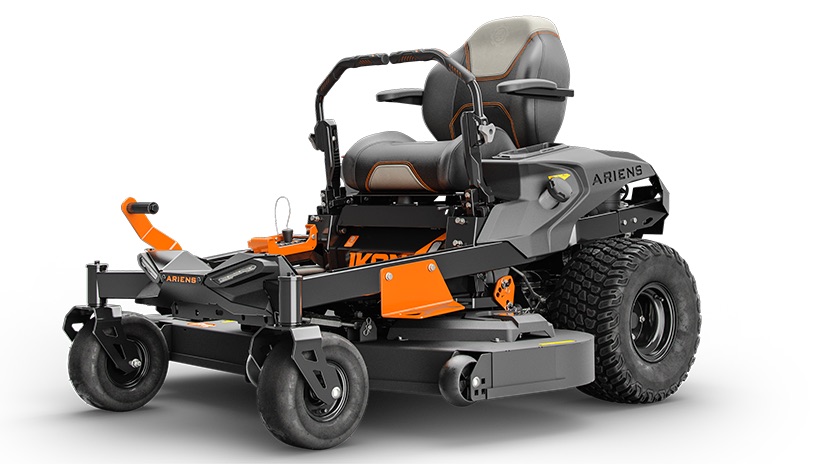

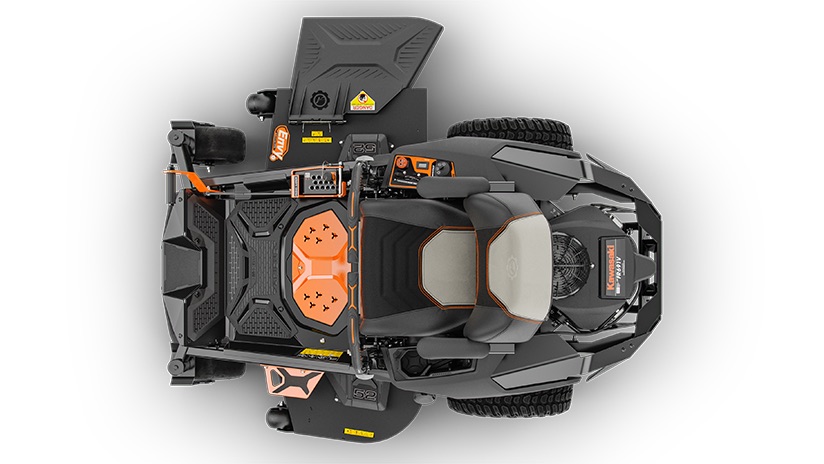

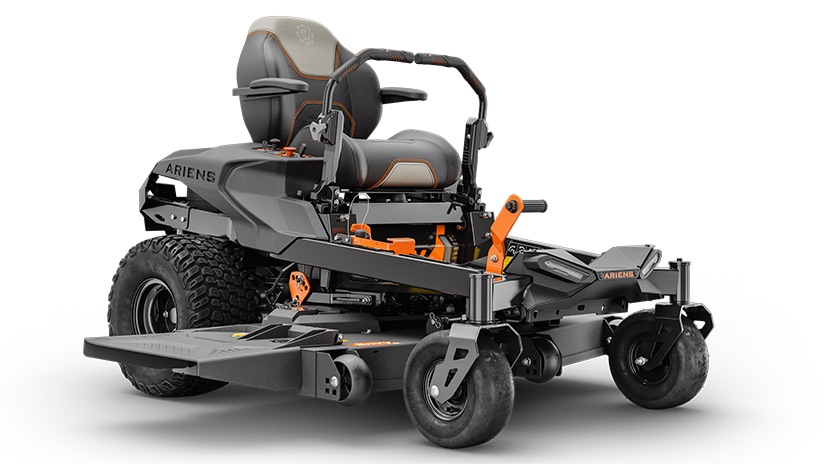

The Ariens IKON ONYX 52-inch zero-turn mower is a premium variant of the standard IKON 52, sharing the same core mechanical specifications while adding a custom ONYX exterior finish, enhanced transaxle cooling, and anti-scalp wheel protection that distinguish it from the base IKON configuration. Designed for homeowners with properties of one to four acres who want the full IKON series performance package combined with a more refined exterior appearance and upgraded functional details, the IKON ONYX delivers reliable wide-deck zero-turn mowing with the 23HP Kawasaki FR691 V-Twin engine and a fully welded steel frame backed by a lifetime frame and front axle warranty. The IKON ONYX occupies a higher price tier than the standard IKON 52 within the Ariens residential zero-turn lineup, reflecting its additional features and distinctive exterior treatment.

52-Inch Fabricated Steel Deck with ENVY Cutting System

The 52-inch cutting deck on the IKON ONYX is fabricated from 11-gauge steel with a 4.5-inch chamber depth and a three-blade ENVY cutting system, matching the deck specification of the standard IKON 52. The ENVY design optimizes airflow within the cutting chamber through a specific deck profile and blade configuration that lifts grass effectively before blade contact, producing a consistent and even cut across the full 52-inch cutting width under varied grass density and height conditions. The enhanced airflow within the 4.5-inch chamber supports effective clipping discharge through the side outlet during continuous operation, reducing deck buildup and maintaining consistent cutting performance throughout extended mowing sessions. The 11-gauge fabricated construction provides structural rigidity and resistance to deformation and impact damage under regular operational stress, maintaining consistent blade alignment and cutting height geometry across the full cutting width over multiple seasons of use. The deck supports mulching, bagging, and side discharge configurations depending on operator preference and seasonal mowing requirements.

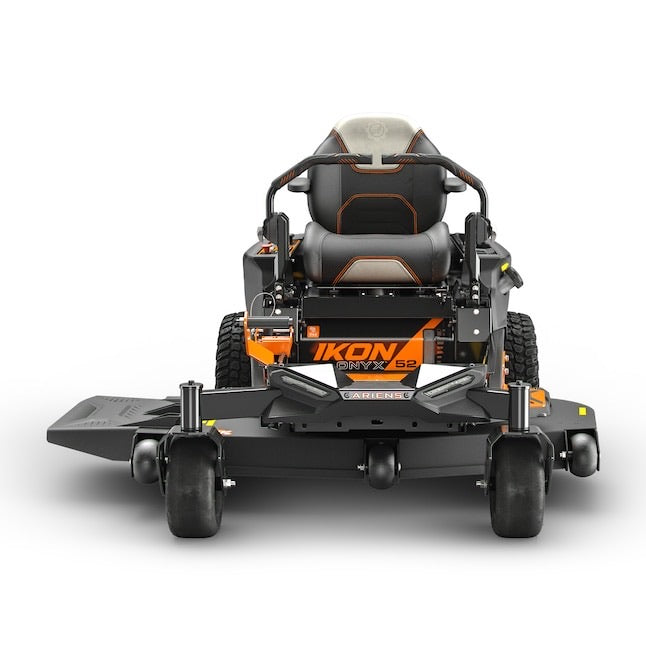

Anti-Scalp Wheels

A functional distinction of the IKON ONYX compared to the standard IKON 52 is the inclusion of anti-scalp wheels on the cutting deck. Anti-scalp wheels make contact with the ground when the deck passes over a raised section of terrain, preventing the deck blades from dropping too close to the surface and removing excess grass or scalping the lawn on humps, transitions between surface levels, and other terrain irregularities. On properties with uneven terrain, surface changes between mowing areas, or raised landscaping features, anti-scalp wheels help maintain a consistent cutting height across the full mowing area and protect the lawn finish quality on sections where deck scalping would otherwise be a risk during normal mowing speed.

23HP Kawasaki FR691 V-Twin Engine

The Kawasaki FR691 V-Twin engine on the IKON ONYX is the same 726cc commercial-influenced FR-series unit used in the standard IKON 52, providing 23HP of consistent torque and stable power output matched to the operational demands of a 52-inch three-blade deck under standard to moderately demanding residential mowing conditions. The FR691 incorporates a cast iron cylinder liner, heavy-duty dual-element air filtration, and internal component tolerances designed for sustained and frequent use, supporting a longer service life than standard residential-grade engine alternatives. The V-Twin configuration delivers balanced power output from two cylinders, reducing engine vibration during operation. Ground speed reaches up to 7 miles per hour during forward mowing passes, and the 3.5-gallon fuel tank supports extended sessions on properties of one to four acres.

Dual Hydro-Gear EZT Transmissions with Enhanced Cooling

The IKON ONYX is equipped with dual Hydro-Gear EZT hydrostatic transaxle units incorporating enhanced transaxle cooling compared to the standard EZT configuration. The enhanced cooling system dissipates heat generated during extended operation more effectively, supporting consistent transaxle performance and longer component service life under sustained use on large properties where the drive system operates continuously for extended periods during each mowing session. The EZT transaxles provide independent control of each drive wheel through the lap bar system, delivering smooth and precise zero-turn maneuvering at all operating speeds. The maintenance-free design removes transmission fluid service from the routine maintenance schedule throughout the service life of the machine under normal residential use.

Custom ONYX Exterior Finish and Frame

The ONYX designation identifies a custom exterior color treatment and styling that differentiates the IKON ONYX visually from the standard IKON 52. The mechanical components, deck construction, engine platform, and core operational specifications are consistent with the standard IKON 52 configuration, with the ONYX distinction applying to the exterior presentation, the enhanced transaxle cooling, and the anti-scalp wheel inclusion. The machine is built on the same fully welded steel frame as the standard IKON 52, backed by the same 3-year limited warranty with a lifetime warranty on the frame and front axle.

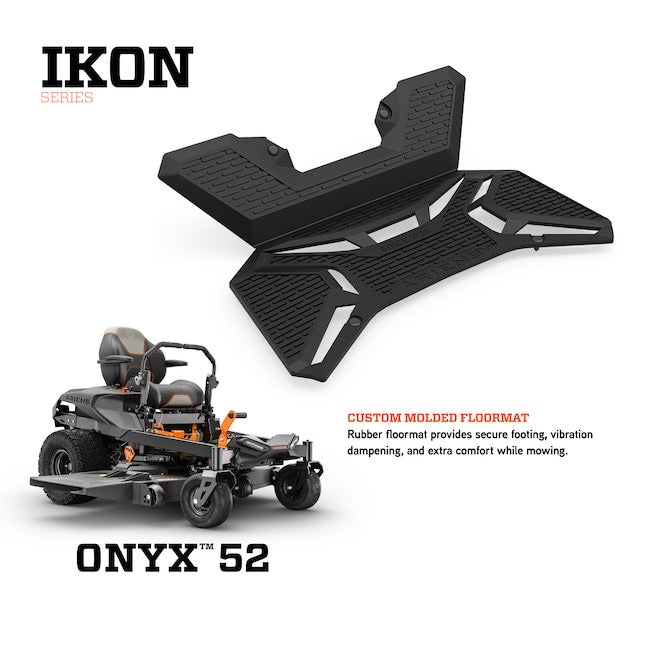

Operator Platform and Comfort

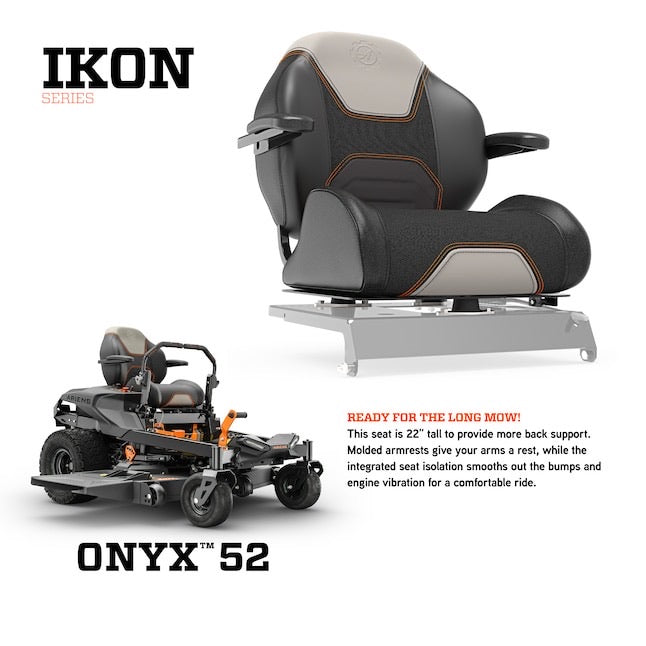

The IKON ONYX is equipped with a premium high-back padded seat with armrests designed to support operator comfort during extended mowing sessions on properties of one to four acres. The seat and control layout are positioned for natural arm movement during lap bar operation throughout the session, and the overall machine stability on residential terrain contributes to a predictable and controlled operating feel during longer mowing sessions on larger properties.

Specifications

Engine: Kawasaki FR691 V-Twin, 23HP, 726cc
Cutting Width: 52 inches
Deck Construction: 11-Gauge Fabricated Steel, 4.5-Inch Chamber, 3-Blade ENVY System
Transmission: Dual Hydro-Gear EZT with Enhanced Cooling, maintenance-free
Ground Speed: Up to 7 MPH
Fuel Capacity: 3.5 Gallons
Additional Features: Anti-Scalp Wheels, Custom ONYX Exterior Finish
Frame: Fully Welded Steel
Warranty: 3-Year Limited, Lifetime Frame and Front Axle
Ideal For: Residential properties of 1 to 4 acres, operators seeking the IKON 52 performance package with enhanced cooling, anti-scalp protection, and a custom exterior finish

What Is Included

This listing includes the Ariens IKON ONYX 52-inch zero-turn mower as described. Please review the full product specifications and warranty details before purchase. For questions about shipping, delivery timeframes, or product information, contact our support team directly.
